Dokumentasi teknologi layanan cloud hosting milik X-code (PT. Teknologi Server Indonesia)
Sistem cloud hosting X-code menggunakan teknologi infrastruktur modern dan terbaru dari Canonical, meliputi MicroCloud berbasis Ubuntu, LXD Cluster dengan 3 Node yang mendukung Leader dan replikasi database, penyimpanan terdistribusi menggunakan Ceph RBD dan CephFS, sistem High Availability dengan mekanisme Leader Election dan redundansi storage, lingkungan hosting containerized berbasis LXD, keamanan HTTPS melalui Cloudflare, serta runtime environment PHP versi 8.3. https://xcodecloud.biz.id
Teknologi yang Digunakan
[Internet / Client]
|
v
[Cloudflare
|
v
[IP Publik (Di data center x-code (PT. Teknologi Server Indonesia))]
|
v
[HAProxy 192.168.1.146 - Round Robin, Failover, Health check] - Intel Xeon E3-1220 v3
|
|-----------------------------|
| |
v v
Intel Core i5 12400 Intel Core 15 10400f
[Node 3] (Utama) [Node 2] (Aktif biasa)
192.168.1.149 (Ceph) 192.168.1.148 (Ceph)
Round Robin |
Health Check |
Failover |
| |
| |
| |
| |
|-----------------------------|
|
v
Intel Core Core i4 11400
[Node 1] (Backup/fallback)
192.168.1.147 (Ceph)
Round Robin
Health Check
Failover

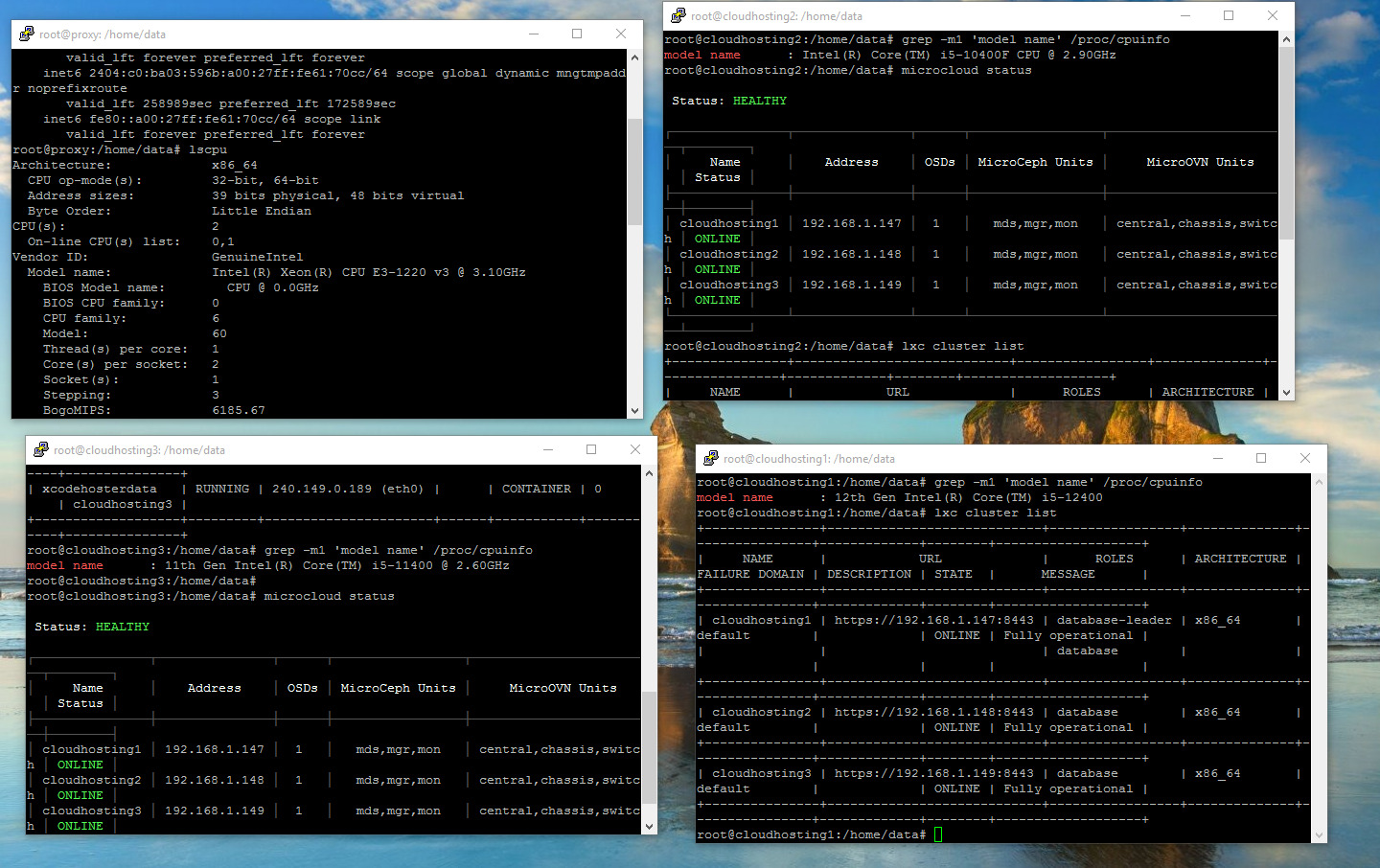

Diagram CPU Tiap Server (Terlampir)
Status MicroCloud Cluster
Status: HEALTHY
| Name |
Address |
OSDs |
MicroCeph Units |
MicroOVN Units |
Status |
| cloudhosting1 |
192.168.1.147 |
1 |
mds, mgr, mon |
central, chassis, switch |
ONLINE |
| cloudhosting2 |
192.168.1.148 |
1 |
mds, mgr, mon |
central, chassis, switch |
ONLINE |
| cloudhosting3 |
192.168.1.149 |
1 |
mds, mgr, mon |
central, chassis, switch |
ONLINE |
Cluster List
| NAME |
URL |
ROLES |
ARCHITECTURE |
FAILURE DOMAIN |
DESCRIPTION |
STATE |
MESSAGE |
| cloudhosting1 |
https://192.168.1.147:8443 |
database-leader, database |
x86_64 |
default |
|
ONLINE |
Fully operational |
| cloudhosting2 |
https://192.168.1.148:8443 |
database |
x86_64 |
default |
|
ONLINE |
Fully operational |
| cloudhosting3 |
https://192.168.1.149:8443 |
database |
x86_64 |
default |
|
ONLINE |
Fully operational |
Storage List
| NAME |
DRIVER |
DESCRIPTION |
USED BY |
STATE |
| ceph |
ceph |
|
4 |
CREATED |
| default |
dir |
|
3 |
CREATED |
Daftar Container pada Node cloudhosting1
| NAME |
STATE |
IPV4 |
IPV6 |
TYPE |
SNAPSHOTS |
LOCATION |
| containerdir |
RUNNING |
240.147.0.151 (eth0) |
|
CONTAINER |
0 |
cloudhosting1 |
| xcodehosterdata |
RUNNING |
240.149.0.189 (eth0) |
|
CONTAINER |
0 |
cloudhosting3 |
Konfigurasi Container: xcodehosterdata
architecture: x86_64
config:
image.architecture: amd64
image.description: ubuntu 24.04 LTS amd64 (release) (20250805)
image.label: release
image.os: ubuntu
image.release: noble
image.serial: "20250805"
image.type: squashfs
image.version: "24.04"
migration.stateful: "true"
volatile.base_image: 5199328c409d5b9763c2eaead13eff38489b36510f97a43a681f5b9ee69b38eb
volatile.cloud-init.instance-id: 371e9429-ba39-41bb-89bd-97be40578a42
volatile.eth0.host_name: vethbadd841f
volatile.eth0.hwaddr: 00:16:3e:32:f7:e2
volatile.idmap.base: "0"
volatile.idmap.current: '[{"Isuid":true,"Isgid":false,"Hostid":1000000,"Nsid":0,"Maprange":1000000000},{"Isuid":false,"Isgid":true,"Hostid":1000000,"Nsid":0,"Maprange":1000000000}]'
volatile.idmap.next: '[{"Isuid":true,"Isgid":false,"Hostid":1000000,"Nsid":0,"Maprange":1000000000},{"Isuid":false,"Isgid":true,"Hostid":1000000,"Nsid":0,"Maprange":1000000000}]'
volatile.last_state.idmap: '[]'
volatile.last_state.power: RUNNING
volatile.last_state.ready: "false"
volatile.uuid: 9ecbf89e-25b0-47ff-a8b5-17cfd817ed01
volatile.uuid.generation: 9ecbf89e-25b0-47ff-a8b5-17cfd817ed01
devices:
eth0:
name: eth0
network: lxdfan0
type: nic
root:
path: /
pool: ceph
type: disk
ephemeral: false
profiles:
- default
stateful: false
description: ""
Informasi Storage Ceph
name: ceph
description: ""
driver: ceph
status: Created
config:
ceph.cluster_name: ceph
ceph.osd.pg_num: "32"
ceph.osd.pool_name: lxd
ceph.user.name: admin
volatile.pool.pristine: "true"
used_by:
- /1.0/images/5199328c409d5b9763c2eaead13eff38489b36510f97a43a681f5b9ee69b38eb
- /1.0/instances/xcodehoster
- /1.0/instances/xcodehosterdata
- /1.0/profiles/ceph-profile
locations:
- cloudhosting1
- cloudhosting2
- cloudhosting3
